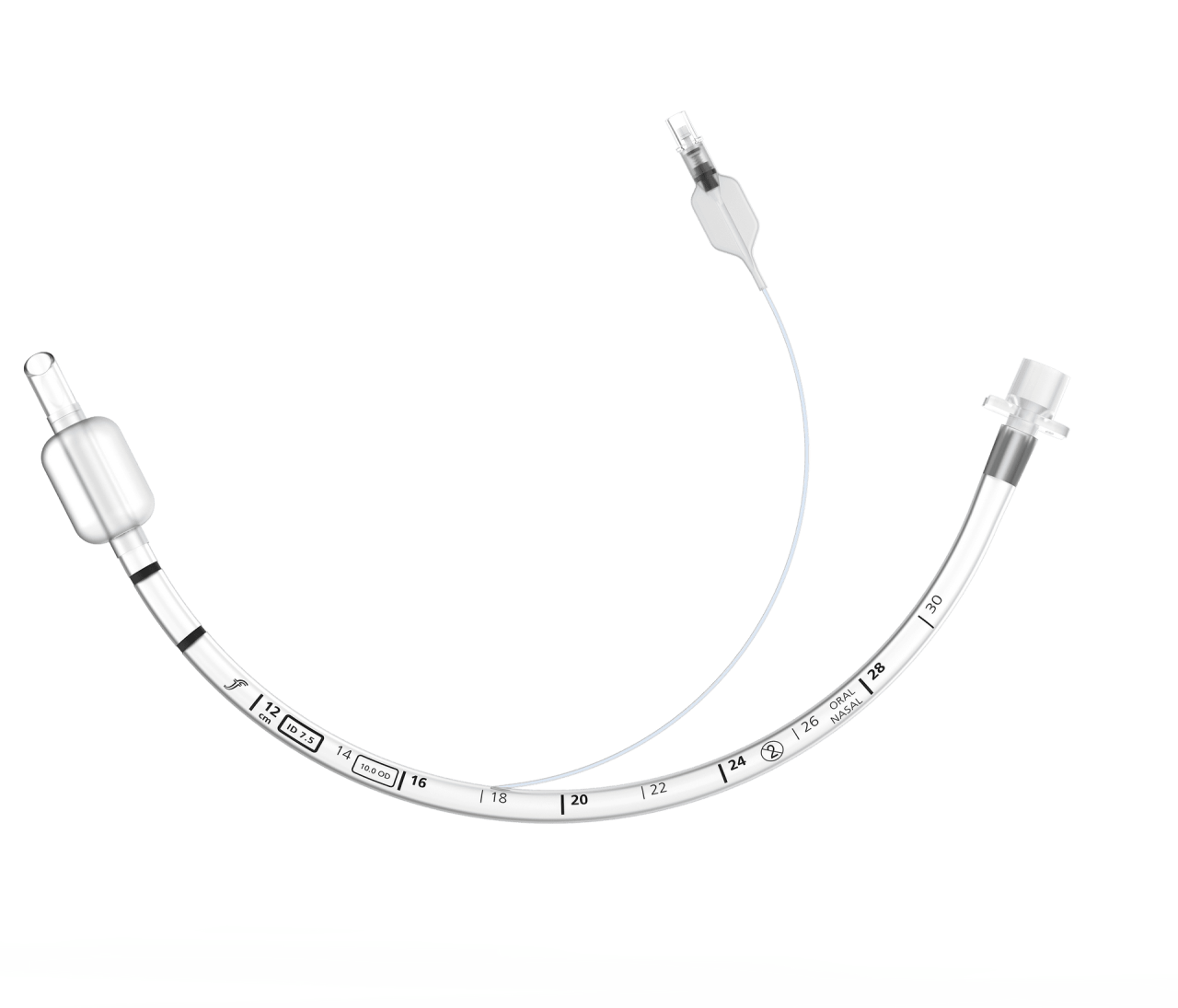

VentiSeal Endotracheal Tubes

Efficient, low pressure seal available in a wide range of shapes and sizes for all airway needs.
With a thin ultra smooth High Volume Low Pressure Cuff, VentiSeal Endotracheal Tubes effectively conform to the tracheal wall.

Soft Rounded Distal Tip

Gentle, bevelled tip reduces potential for soft tissue trauma during insertion, with minimal increase in flow resistance.

Large Murphy’s Eye

Allows larger flow of gas, to occur, should the tip become occluded.



Circumferential Vocal Cord Markers

Double guide lines are clearly seen from all angles, facilitating safe and accurate cuff placement below the vocal cords.

Key Features

Distance Markings

Clear and bold print give earlier indication of intubation depth and is a simple, safe and reliable method for correct tracheal tube placement.


Kink Resistant

VentiSeal Endotracheal Tubes retain tube patency for patient safety, whilst softening at body temperature to conform to patient’s respiratory tract.

Coloured Inflation Line

For quick identification to differentiate from other tubing.

Simple Verification

Small rounded shape of the balloon gives a more responsive and tactile feel to the user for inflation check.

Reinforced Central Rib

Internal line running through the centre of the pilot balloon prevents complete collapse during rapid deflation. Line to cuff is always open.

Ordering Informations

ORAL/NASAL CURVED (ORAL) SOUTH CURVED (ORAL) NORTH CURVED (NASAL) NORTH REINFORCED WITH STYLET SIZE ID (mm) DESC QTY
038-971-025 038-972-025   038-974-025 038-975-025   2.5   10
038-971-030 038-972-030   038-974-030 038-975-030   3.0   10
038-971-035 038-972-035   038-974-035 038-975-035   3.5   10
038-971-040 038-972-040   038-974-040 038-975-040   4.0   10
038-971-045 038-972-045   038-974-045 038-975-045   4.5   10
038-971-050 038-972-050   038-974-050 038-975-050 038-976-050 5.0   10
038-971-055 038-972-055   038-974-055 038-975-055 038-976-055 5.5   10
038-971-060 038-972-060 038-973-060 038-974-060 038-975-060 038-976-060 6.0   10
038-971-065 038-972-065 038-973-065 038-974-065 038-975-065 038-976-065 6.5   10
038-971-070 038-972-070 038-973-070 038-974-070 038-975-070 038-976-070 7.0   10
038-971-075 038-972-075 038-973-075 038-974-075 038-975-075 038-976-075 7.5   10
038-971-080 038-972-080 038-973-080 038-974-080 038-975-080 038-976-080 8.0   10
038-971-085 038-972-085 038-973-085   038-975-085   8.5   10
038-971-090 038-972-090 038-973-090   038-975-090   9.0   10
038-971-095           9.5   10
038-971-100           10.0   10
038-971-105           10.5   10
038-971-110           11.0   10
